Leírás és Paraméterek
| Basic load ratings | ||
| dynamic | Ca | 12,7 kN |
| static | C0 | 6,55 kN |
| Designation | ||
| YEL 204-2F | ||
| Fatigue load limit | ||
| Pu | 0,28 kN | |
| Limiting speed | ||
| with shaft tolerance h6 | 8500 r/min | |
| Mass | ||
| 0,19 kg | ||

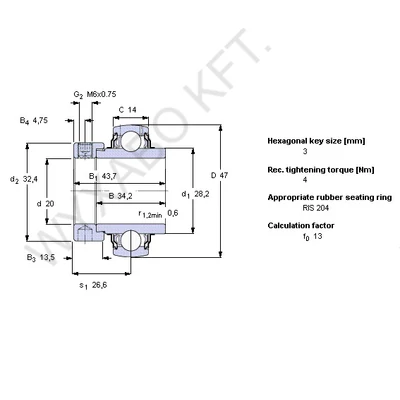

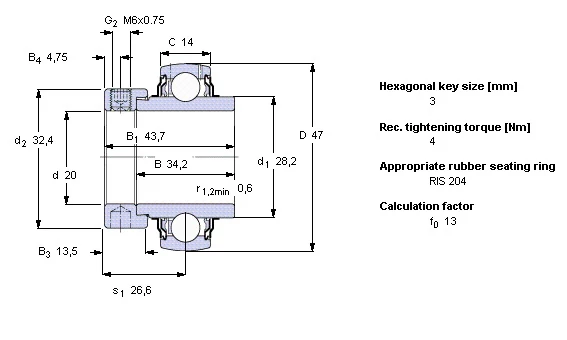

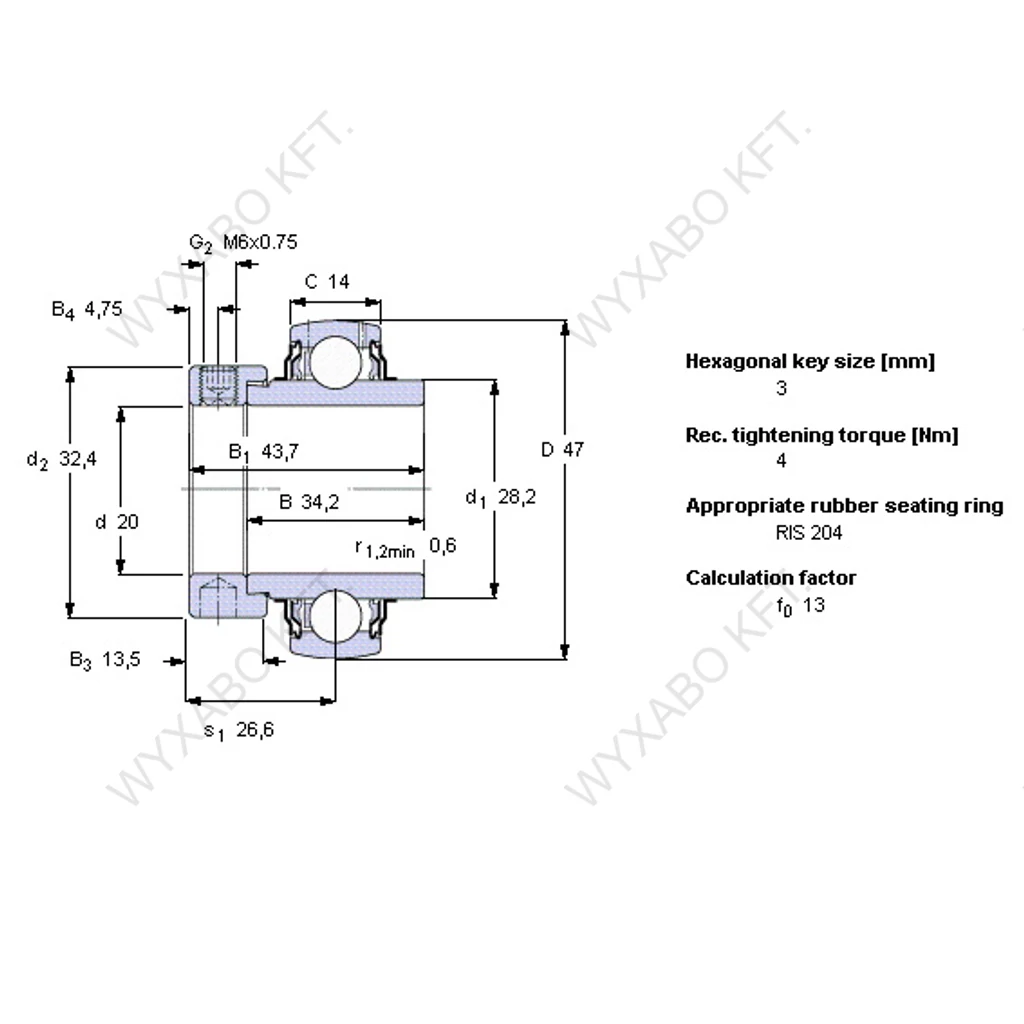

| Principal dimensions | ||
| Ca | 14 mm | |
| B1 (B) | 43,7 mm | |
| D | 47 mm | |
| d | 20 mm | |
